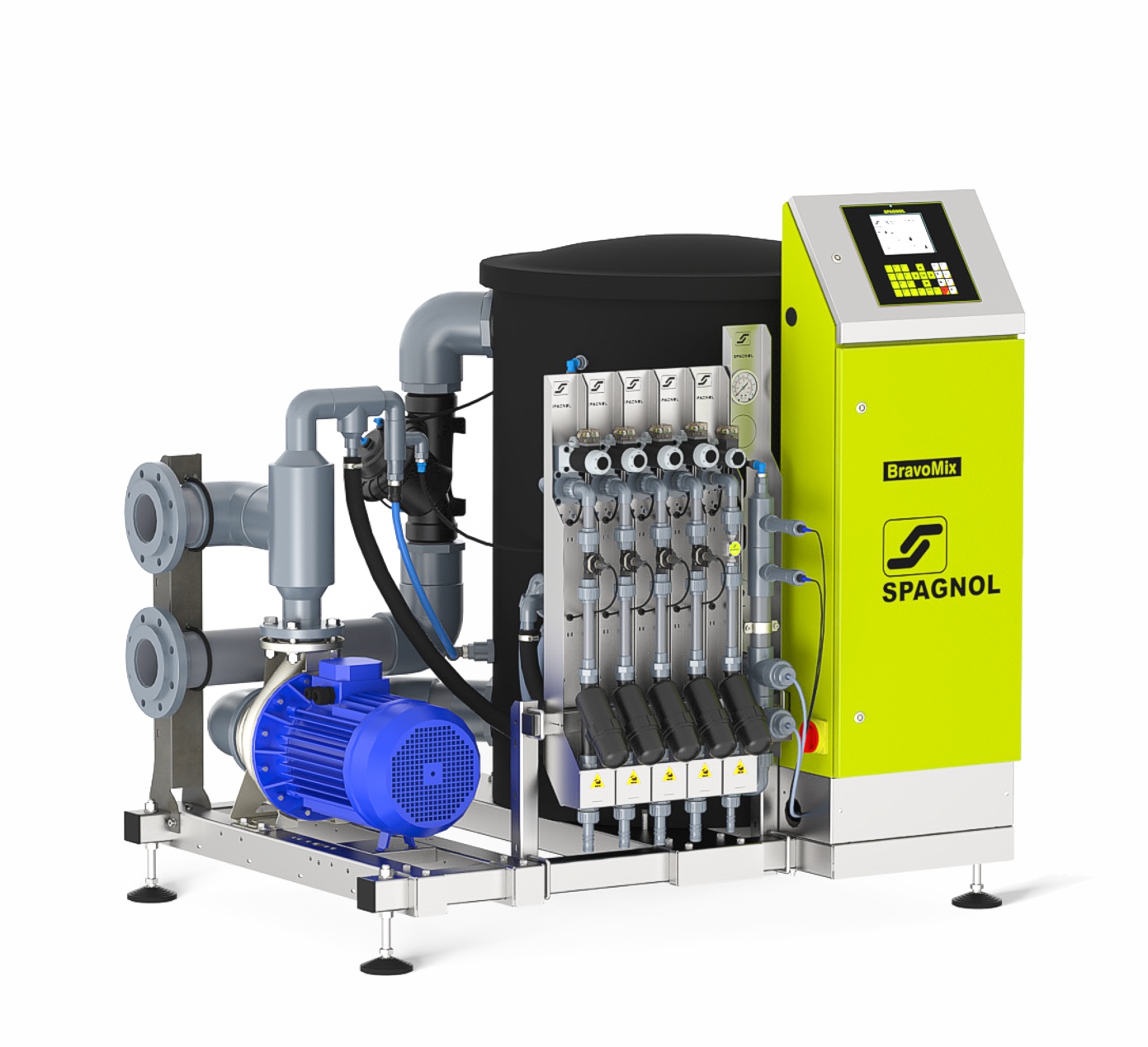

BravoMix

Open tank fertigation dosing unit, max. 4 fertilizers + 1 acid

Home · Products · Mixing Tank Fertigation Units · BravoMix

BravoMix-L
Flowrate 2÷26 m³/h

BravoMix-M
Flowrate 10÷36 m³/h

BravoMix-H
Flowrate 20÷80 m³/h

BravoMix-HH
Flowrate 40÷130 m³/h

High technology for the best fertigation

For the fertigation of cultivations, we realized Bravomix, a fertigation dosing unit for soilless cultivations with dosage in mixing tank.
Bravomix can be configured with a horizontal or vertical axis pump and it is possible to install a variable speed drive on it, thanks to which each irrigation zone can be irrigated at the desired pressure.
For closed loop irrigation systems, Bravomix can be configured to control Spagnol Drenamix, the drainage recirculation unit.
Every project has its own peculiarity, for this reason we thought about Bravomix as a unit that can be configured based on your necessities, it can satisfy all your needs now and in the future as well.
Based on the irrigation flow need, BravoMix is available in different sizes: L / M / H / HH.

Spagnol fertigation units are extremely versatile and can be easily configured according to the desired irrigation system: open field irrigation, hydroponic, sub-irrigation, open or closed loop irrigation and sub-irrigation systems.
The precise and reliable dosing channels for nutrient solutions can be configured in two different ways: with visual flow meter or with electronic flow meter.
The electronic one allows to control with extreme precision and security the multichannel dosage both in total conductivity mode and in proportional mode.
The crop sensors SWC (soil and substrate water content), Drenamatic and Gravimatic, as well as many other climatic sensors, can be easily connected to Bravomix so as to create an integrated system for the cultivation’s management.
In addition to the fertigation control, Bravomix can manage the climate in the greenhouse in up to 4 climatic zones for 4 periods a day. In terms of nutrition and microclimate, it collects and processes a large amount of data and information , that can be subsequently processed to improve the production.
With Vision On-Premises and Vision Cloud services, the user has always the complete remote control of the entire system by smartphone, tablet or PC.

Main tchnical data

Outlet flow rate Bravomix L	From 3 up to 26 m³/h.
Outlet flow rate Bravomix M	From 10 up to 34 m³/h.
Outlet flow rate Bravomix H	From 20 up to 80 m³/h.
Outlet flow rate Bravomix HH	From 40 up to 130 m³/h.
Acid/alcali dosing channel	Up to 1. Max. dosing capacity 300 l/h.
Fertilizer dosing channels	Up to 4. Max. dosing capacity of Bravomix L: 300 l/h. Max. dosing capacity of Bravomix M, H, HH: 600l/h.
Fertilizer and acid dosing channel types	With variable area flowmeter / With electronic flowmeter / With variable area and electronic flowmeter.
Dosing modes	Total EC / Proportional / Combined EC-proportional / Quantity / Irrigation stop at quantity.
EC sensors	1 or 2 EC sensors with themperature measurement and compensation.
pH sensors	1 or 2 pH sensors (electrode).
Irrigation zone valves	8 expandable up to 250.
Water pressure regulation	Yes.
Irrigation systems supported	Direct irrigation / Indirect irrigation / Ebb&Flood / Closed cicle irrigation.
Maximum irrigation water tanks	20
Maximum irrigation lines	20
Irrigation programs	Manual command / Clock / Timer / Light radiation sum / Drainage influence / Substrate weight / Substrate water content / Environment temperature/humidity / Pressure / External input.
Greenhouse climate control	4 zones 4 periods/day (optional)
Connectable sensors	Drainage quantity / Drainage EC / Drainage pH / Substrate weight / EC premix / pH premix / Radiation / Temperature-humidity meteo and zones / Tanks level sensors / Irrigation flowmeters / Wind speed / Wind direction / Rain presence / Rain quantity
Remote control and alarms	With PC, smartphone, tablet by Spagnol Vision app.
