Open tank fertigation dosing unit, max. 8 fertilizers + 2 acids

Home · Products · Mixing Tank Fertigation Units · EvoMix

The state of the art of fertigation dosing unit

For the fertigation of cultivations, we realized Evomix, a fertigation dosing unit for soilless cultivations with dosage in mixing tank.
Bravomix can be configured with a horizontal or vertical axis pump and it is possible to install a variable speed drive on it, thanks to which each irrigation zone can be irrigated at the desired pressure.
For closed loop irrigation systems, Evomix can be configured to control Spagnol Drenamix, the drainage recirculation unit.
Every project has its own peculiarity, for this reason we thought about Bravomix as a unit that can be configured based on your necessities, it can satisfy all your needs now and in the future as well.

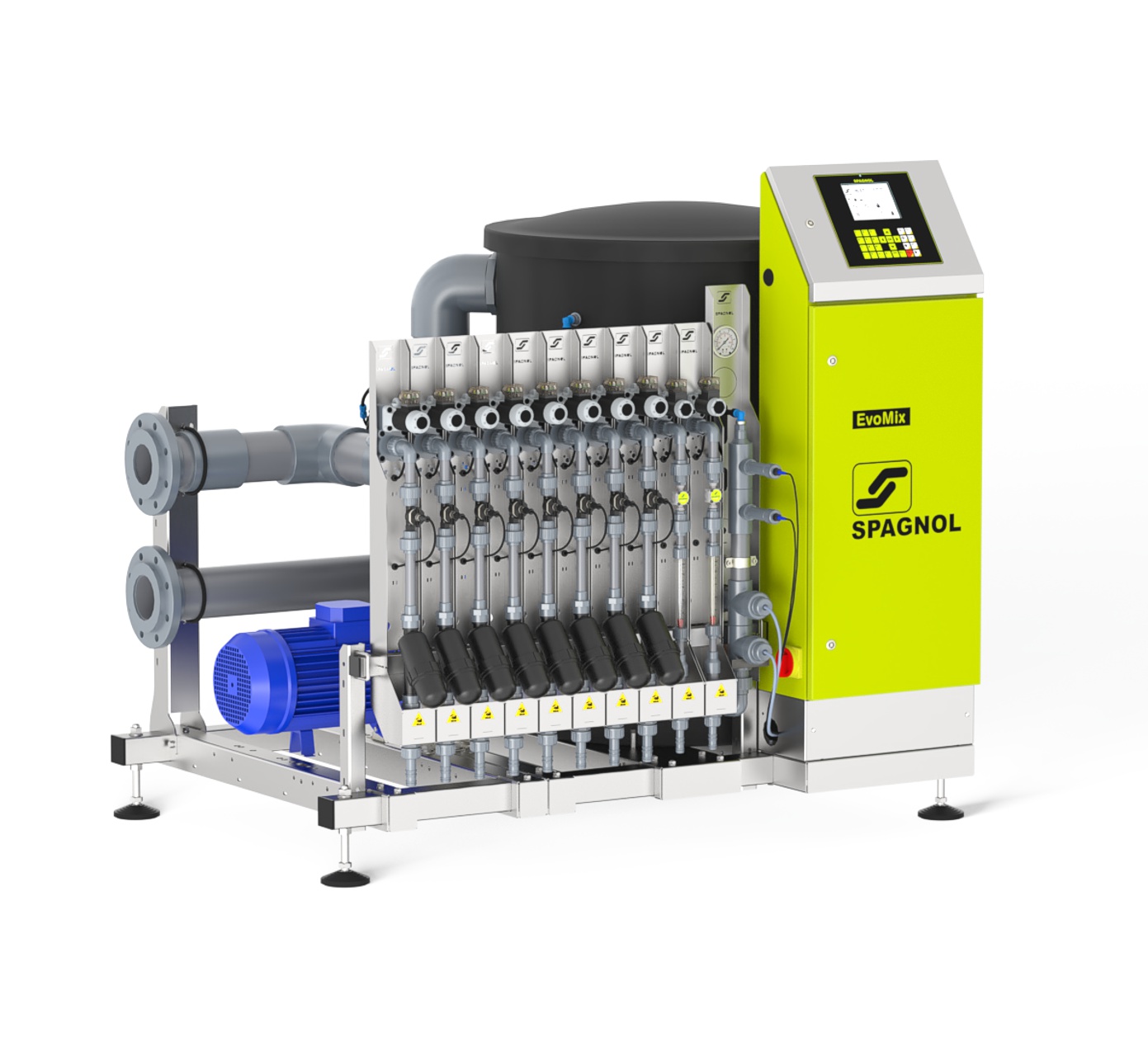

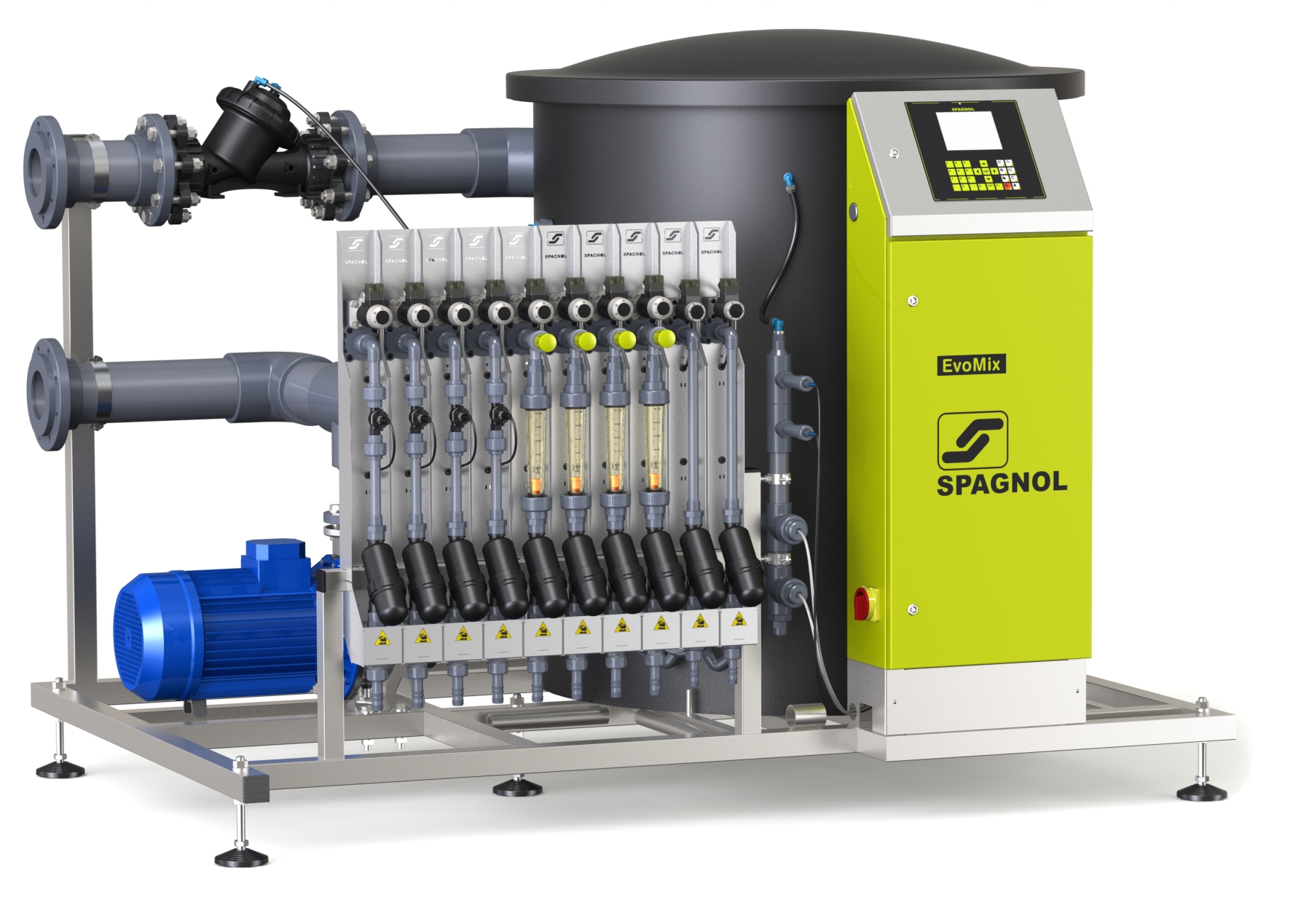

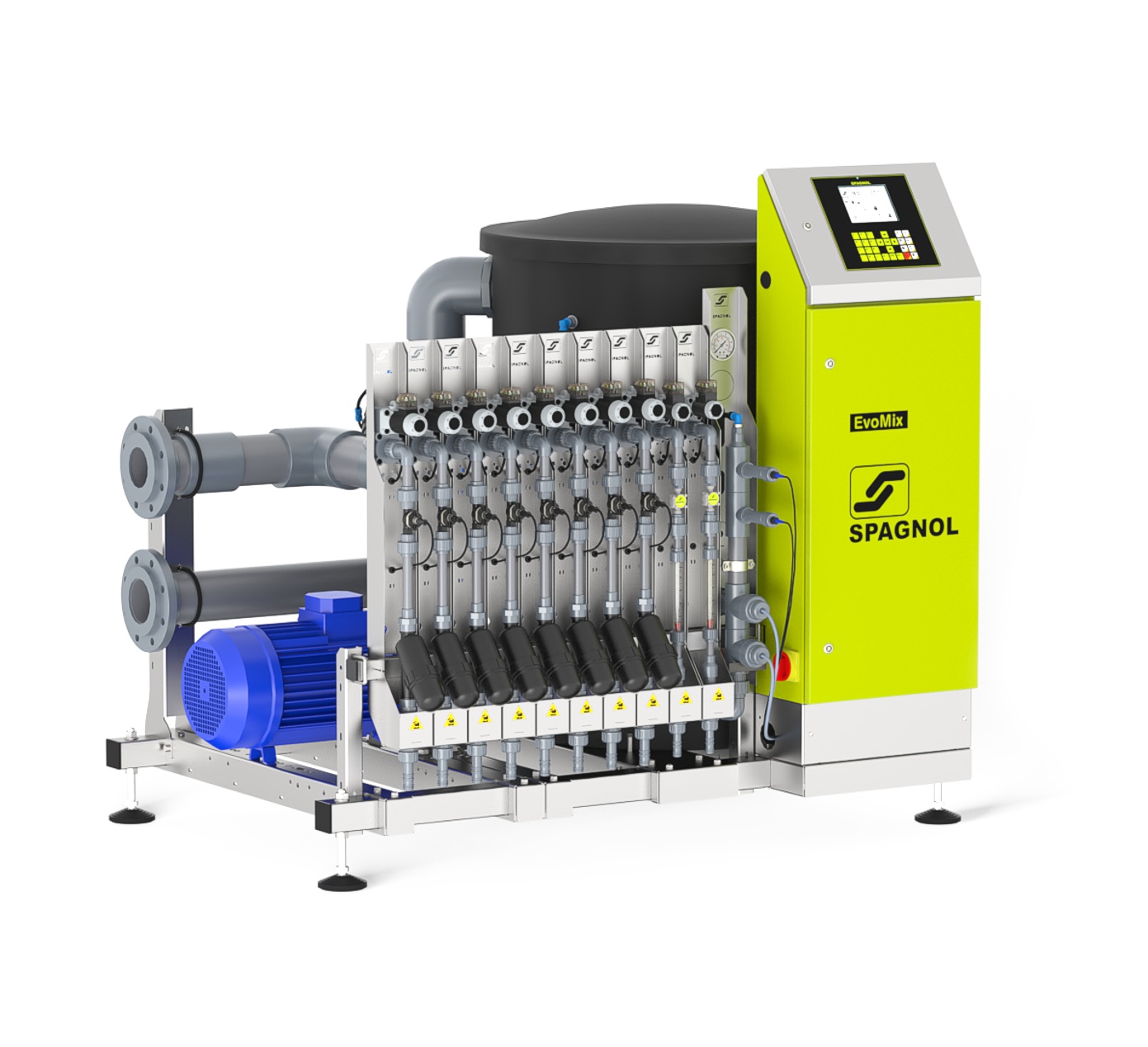

Based on the irrigation flow need, EvoMix is available in different sizes: L / M / H / HH.

Spagnol fertigation units are extremely versatile and can be easily configured according to the desired irrigation system: open field irrigation, hydroponic, sub-irrigation, open or closed loop irrigation and sub-irrigation systems.
The precise and reliable dosing channels for nutrient solutions can be configured in two different ways:  with visual flow meter or with electronic flow meter.
The electronic one allows to control with extreme precision and security the multichannel dosage both in total conductivity mode and in proportional mode.
The crop sensors SWC (soil and substrate water content), Drenamatic and Gravimatic, as well as many other climatic sensors, can be easily connected to Evomix so as to create an integrated system for the cultivation’s management.
In addition to the fertigation control, Evomix can manage the climate in the greenhouse in up to 4 climatic zones for 4 periods a day. In terms of  nutrition and microclimate, it collects and processes a large amount of data and information , that can be subsequently  processed to improve the production.
With Vision On-Premises and Vision Cloud services, the user has always the complete remote control of the entire system by smartphone, tablet or PC.

Main technical data

Outlet flow rate Evomix L From 3 up to 24 m³/h.
Outlet flow rate Evomix M From 10 up to 34 m³/h.
Outlet flow rate Evomix H From 20 up to 77 m³/h.
Outlet flow rate Evomix HH From 40 up to 127 m³/h.
Acid/Alkali dosing channel Up to 2. Max. dosing capacity 300 l/h.
Fertilizer dosing channels Up to 8. Max. dosing capacity of Bravomix L: 300 l/h. Max. dosing capacity of Bravomix M, H, HH: 600l/h.
Fertilizer and acid dosing channel types With variable area flowmeter / With electronic flowmeter / With variable area and electronic flowmeter.
Dosing modes Total EC / Proportional / Combined EC-proportional / Quantity / Irrigation stop at quantity.
EC sensors 2 EC sensors with themperature measurement and compensation.
pH sensors 2 pH sensors (electrode).
Irrigation zone valves 8 expandable up to 250.
Water pressure regulation Yes.
Irrigation systems supported Direct irrigation / Indirect irrigation / Ebb&Flood / Closed cicle irrigation.
Maximum irrigation water tanks 20
Maximum irrigation lines 20
Irrigation programs Manual command / Clock / Timer / Light radiation sum / Drainage influence / Substrate weight / Substrate water content / Environment temperature/humidity / Pressure / External input.
Greenhouse climate control 4 zones 4 periods/day (optional)
Connectable sensors Drainage quantity / Drainage EC / Drainage pH / Substrate weight / EC premix / pH premix / Radiation / Temperature-humidity meteo and zones / Tanks level sensors / Irrigation flowmeters / Wind speed / Wind direction / Rain presence / Rain quantity
Remote control and alarms With PC, smartphone, tablet by Spagnol Vision app.
